240V


Streamline AV Installations

The SurgeX SQUID is the only product that provides AC/DC power protection, boxed network control, and analytical software in one chassis. You’ll no longer have to install a product for AC, another for DC, and yet another to monitor and control the power environment. It is the perfect solution for collaborative flex environments, huddle spaces, and other tight-spaced AV settings.

  • Universal 120V-240V AC input with IEC connectors
  • 4 controlled and monitored AC receptacles
  • 3 DC banks, 2 controllable
  • Measures electrical parameters, including Voltage, Current, Power, Frequency, Power Factor, Crest Factor
  • Time stamped power quality events
  • Internal storage of 30 days’ worth of Max/Min/Avg electrical parameters
  • Wired Ethernet for Web server (HTTP/HTTPS), 802.1x authentication
  • TLS, SSL, SNMP V3, single sign-on
  • 2, 5V USB ports for charging
  • Compact size fits along, behind, or near equipment

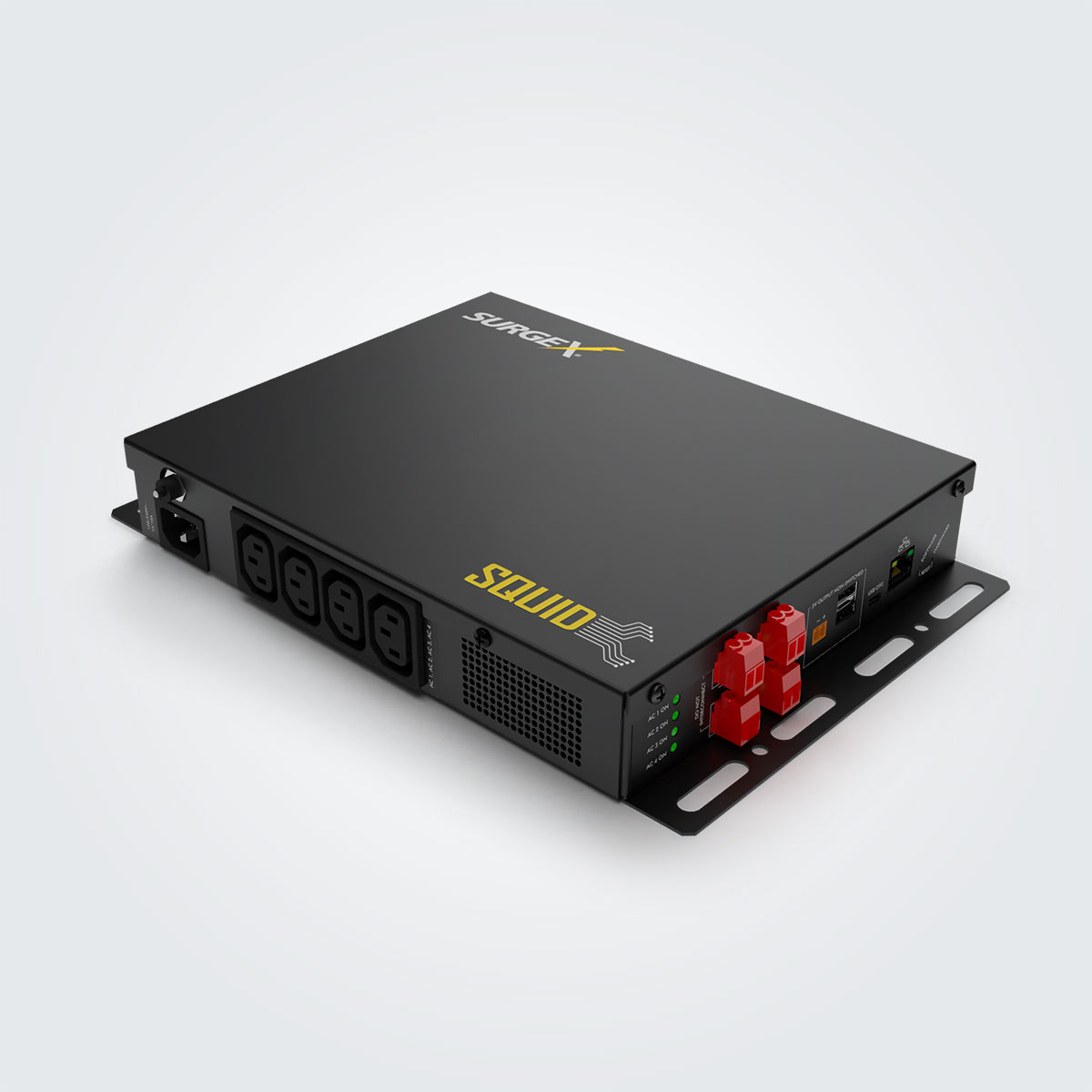

Models: SX-DC-8-12-230, SX-DC-8-24-230, SX-DC-8-1224-230

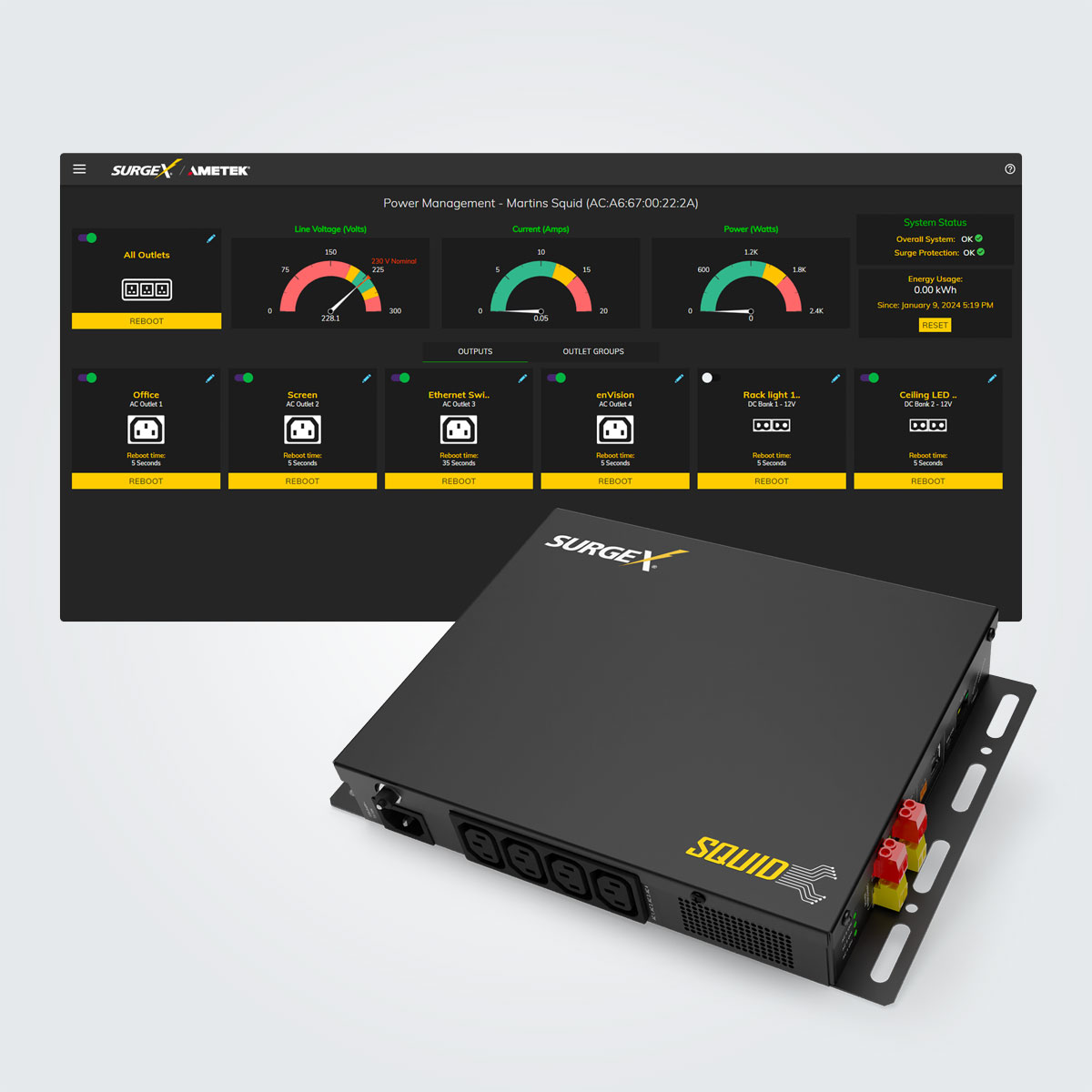

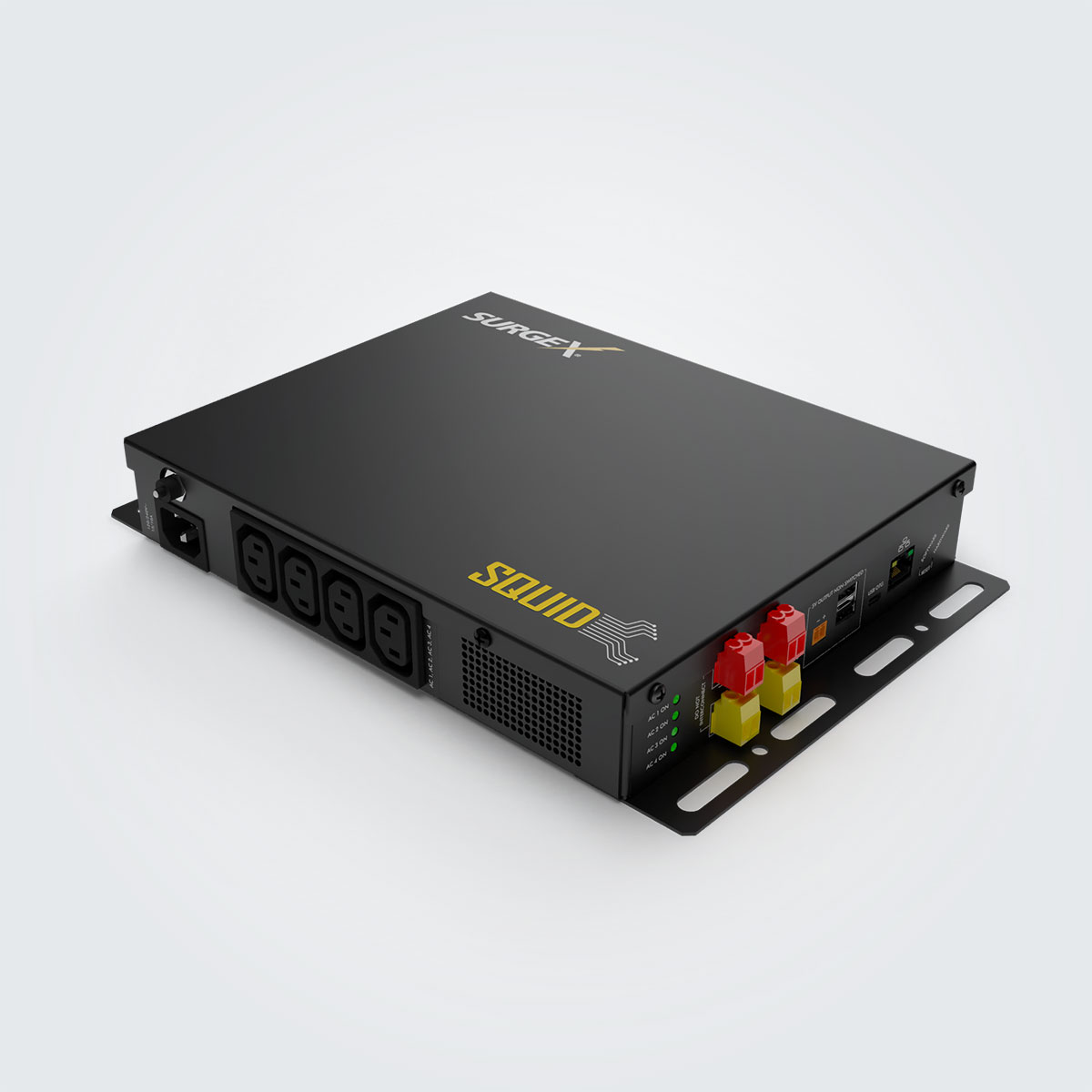

SurgeX SX DC 8 1224 Tilted

  • Overview +




    Its combination of 4 controlled and monitored AC receptacles, and 3 DC banks allow service teams to install equipment with fewer wires and connections. Significantly reducing installation time, effort, and cost. It also eliminates unsightly wall warts!

    The Squid’s software offers a single solution for management, mitigation, and control of a system’s power. Its competencies such as sequencing, scheduling, auto-ping, IP control, and monitoring, reduce service calls through proactive management. Plus, its 360 degrees of power protection ensures equipment remains up and running without disruption.

    Streamline AV installations and create a proper and intelligent power foundation with the SurgeX SQUID.




  • Downloads +

  • Modules +


     Crestron Module

    This package contains the complete module, corresponding help documentation and a demo program / UI. This has been tested both with and without SSL enabled. This module is written for Crestron Series3 and 4 processors, Series 2 legacy controllers are not supported.  This module is for Crestron’s SIMPL Windows platform.

     Control4 Driver

    This package contains the complete module, corresponding help documentation and some test controls for manual device manipulation. This has been tested both with and without SSL enabled. This module is for Control4s Composer Pro platform.

     Extron Module

    The package contains the complete module, corresponding help document and a demo program/UI. It has been fully tested both with and without SSL enabled. This module is for Extron’s Global Scripter platform.
